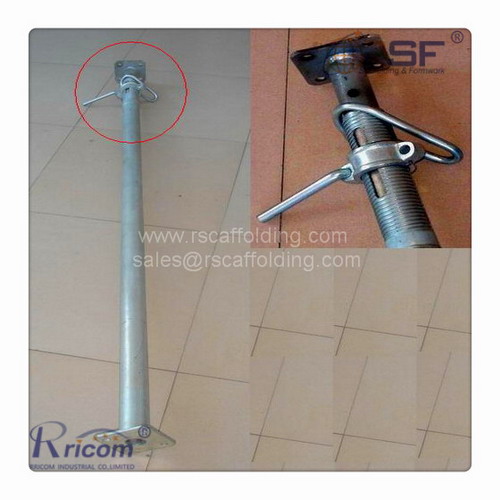

Heavy Duty Ajustable Shoring Props-(10’6”to16′)

10'6''to16' Heavy Duty Post Shores(also known as Steel Props,Acrow Props,Telescopic Props,Shoring Props) Made by High Quality Strengh Steel 3M,4M,5M or other length can be customized

Share on FacebookTweet about this on TwitterShare on LinkedInShare on Google+Pin on Pinterest
INQUIRY

Scaffolding Post Shores(also known as Steel Props,Acrow Props,Telescopic Props,Shoring Props) Made by High Quality Strengh Steel

Descriptions :
Material:Q235 or Q345 High Quality Strengh Steel
Adjustable Range:6’6″–11′
Weight:40.50 lbs
Inner Tube:OD1.90″x0.126″
Outer Tube:OD2.38″x0.090″
Surface Treament:Galvanized,Hot Dip Galvanized,Powder Coated,Painting or others

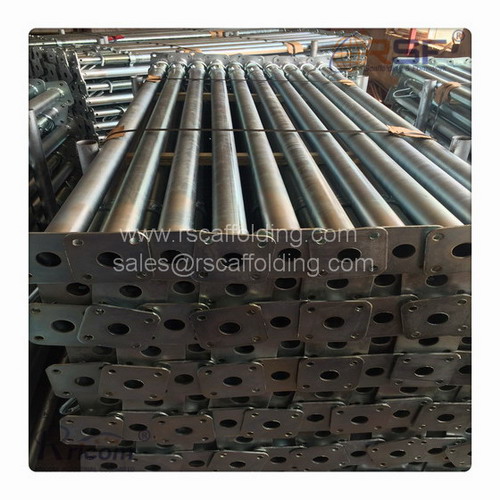

Packing:Wooden/Steel Pallets with Plastic Membrane
Brand:RRICOM;RSF
OEM:Available
Note:We can do all kinds of specifications post shores based on our customer’s drawings

SPECIFICATIONS

Item No.

Length

External Tube

Internal Tube

Weight(lbs)

RSP101

5’7”—9’6”

2.38”x 0.09”x47.05”

1.90”x0.126”x66.96”

51.77

RSP102

3”6’—6’

2.38”x 0.09”x32.17”

1.90”x0.126”x41.65”

24.20

RSP103

5’9”—10’3”

2.38”x 0.09”x50.94”

1.90”x0.126”x66.73”

36.87

RSP104

6’6”—11’

2.38”x 0.09”x52.28”

1.90”x0.126”x77.48”

40.50

RSP105

8’3”—13’

2.38”x 0.09”x62.28”

1.90”x0.126”x101.5”

45.50

RSP106

10’6”—16’

2.38”x 0.09”x68.62”

1.90”x0.126”x125.5”

53.5

Note:We can do all kinds of specifications post shores based on our customer’s drawing

ALLOWABLE LOAD (LBS)

ITEMS

4”

5”

6”

7”

8”

9”

10”

11”

12”

13”

14”

15”

RSP101

7200

7000

6800



















RSP102

6800

6650

6500



















RSP103





6500

6070

5650

5230

4810











RSP104







6180

5850

5650

5230

4810









RSP105











5650

5230

4810

4390

3970





RSP106















4810

4390

3970

3550

3250
