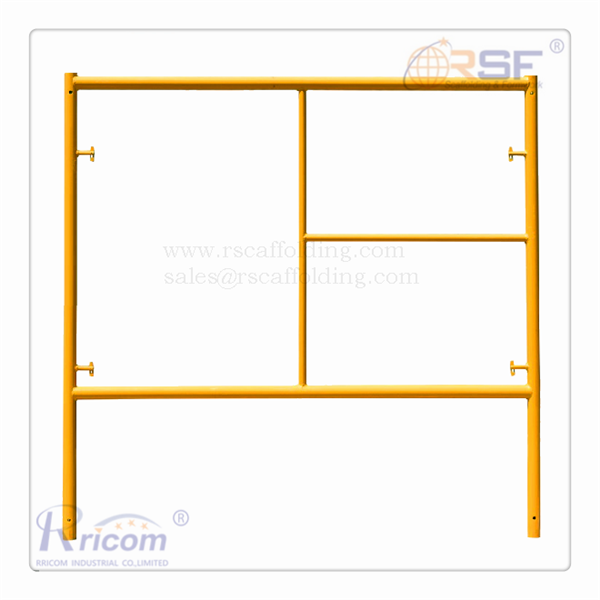

5′ x 5′ BJ-Style Scaffolding Ladder-RSF502
Build Sturdy and Strong Scaffold Structures with the 5' x 5' BJ-Style Scaffolding Ladder-Flip Lock Type
Descriptions:
Weight:35.35 lbs.
Material:High Quality Q235 or Q345 Strengh Steel
Outside Diameter:1.625″ ;Wall Thickness: 0.090″
Lock Type:Flip Type Lock
First Lock:11.75″ From Top of the Frame Leg
Lock Span:27-3/4″(uses a 7′ x 27-3/4″ Cross Brace)
Coupling Pin Hole:Drilled at 90 Angle
Coupling Pin Hole Location:2″ From the Top of Frame Leg.
Surface Treatment:Powder Coated Yellow
Packing:Steel Pallet with Plastic Membrane
Product code:RSF502
Brand:RRICOM;RSF
OEM:Available
Note:Our factory can do all kinds of scaffolding frames based on our customer’s drawings or samples.
