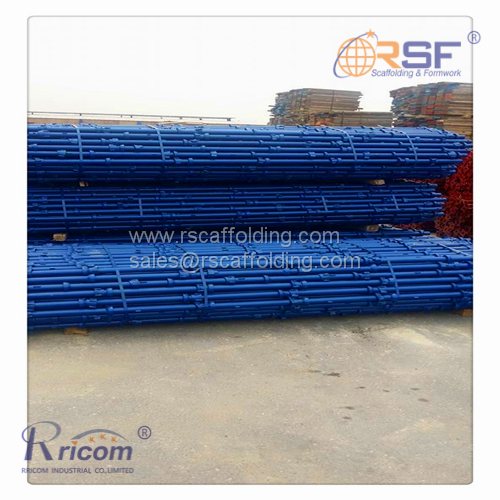

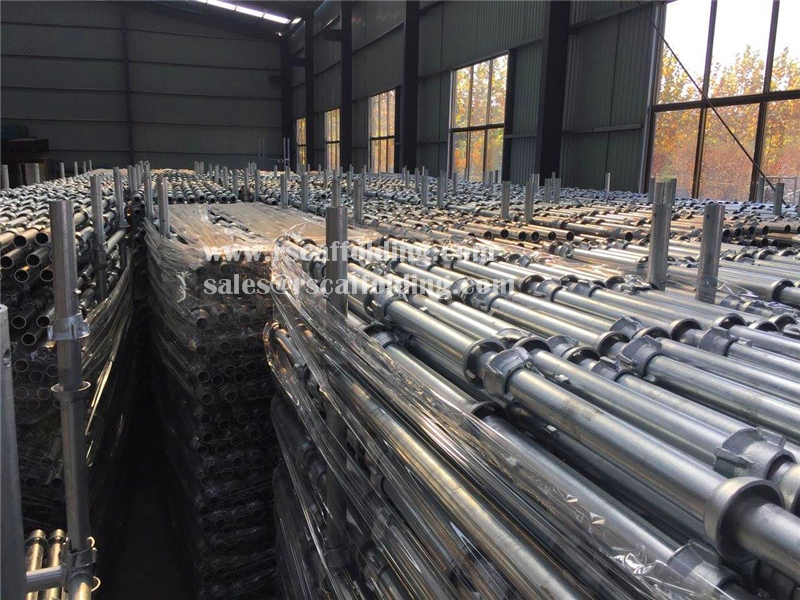

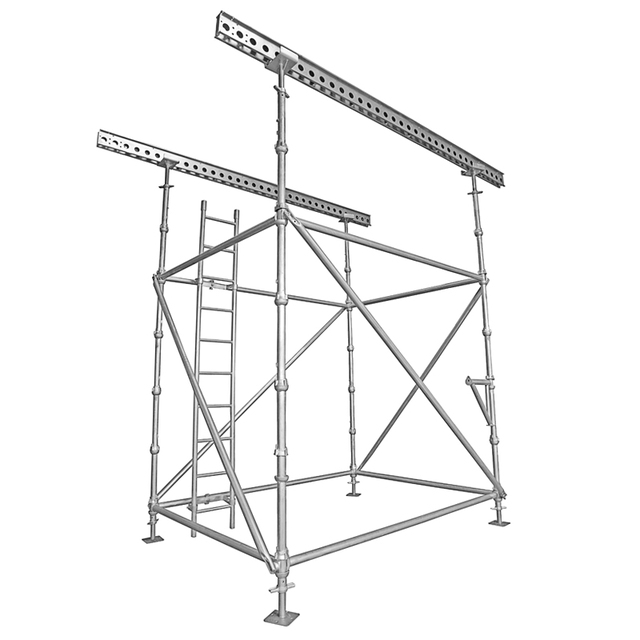

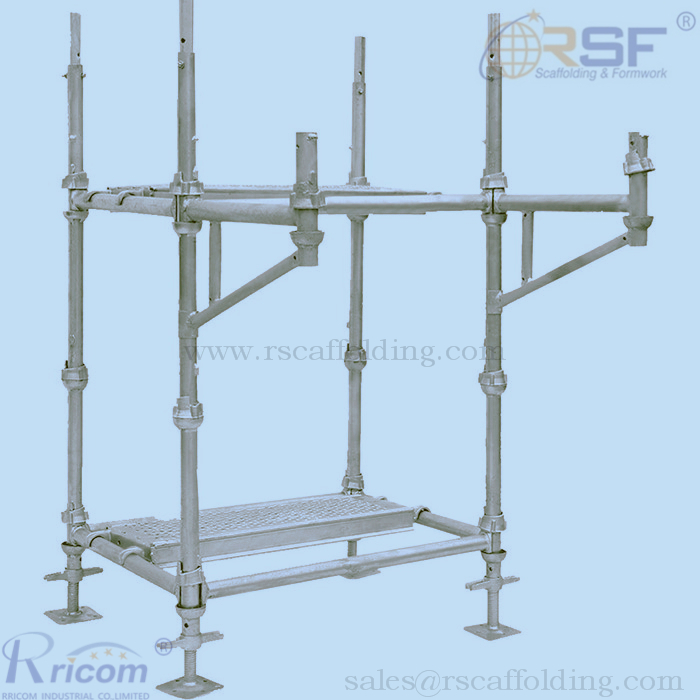

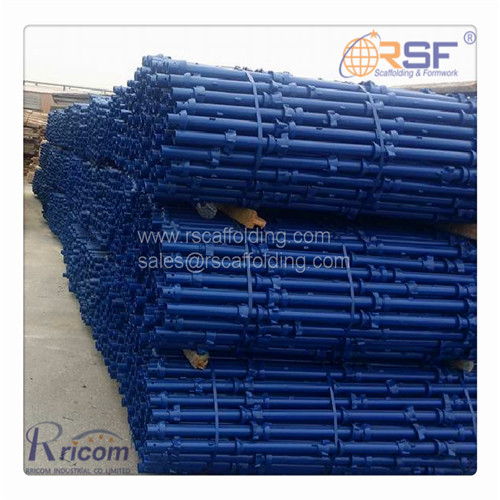

Cuplock System Scaffolding

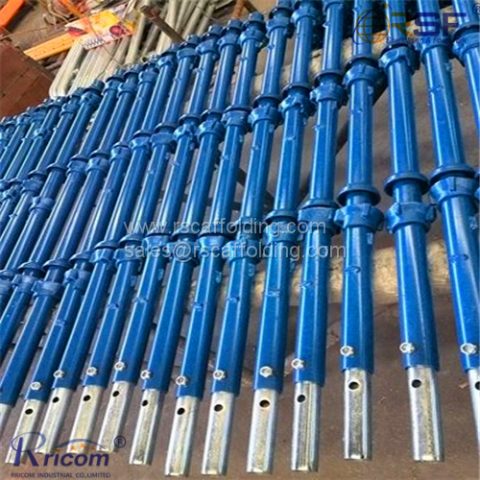

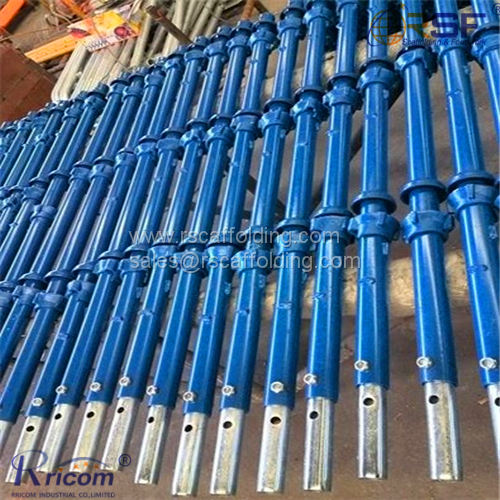

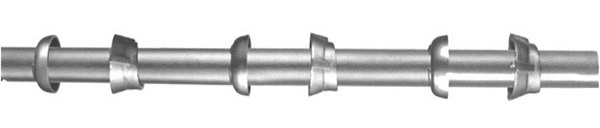

Cuplock Standard/Vertical
1.Normal Tube Size:Φ48.3x3.25mm

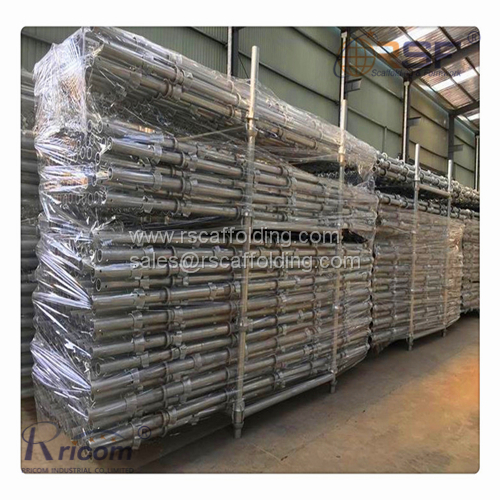

2.Available in Hot Dip Galvanized Surface or Customized
|
Item No. |
Description |
Length |
Unit Weight |
||
|
RSCS 050 |
0.50M Cuplock Standard |
0.50 M |
1’8’’ |
3.53 KG |
7.77 LBS |
|
RSCS 100 |
1.00M Cuplock Standard |
1.00 M |
3’3’’ |
6.31 KG |
13.91 LBS |
|
RSCS 130 |
1.30M Cuplock Standard |
1.30 M |
4’3’ |
8.28 KG |
18.25 LBS |
|
RSCS 150 |
1.50M Cuplock Standard |
1.50 M |
4’11’’ |
9.05 KG |
19.95 LBS |
|
RSCS 180 |
1.80M Cuplock Standard |
1.80 M |
6’ |
11.05 KG |
24.36 LBS |
|
RSCS 200 |
2.00M Cuplock Standard |
2.00 M |
6’6’’ |
11.82 KG |
26.07 LBS |
|
RSCS 230 |
2.30M Cuplock Standard |
2.30 M |
7’6’’ |
13.80 KG |
30.42 LBS |
|
RSCS 250 |
2.50M Cuplock Standard |
2.50 M |
8’2’’ |
14.57 KG |
32.12 LBS |
|
RSCS 280 |
2.80M Cuplock Standard |
2.80 M |
9’2’’ |
16.58 KG |
36.55 LBS |
|
RSCS 300 |
3.00M Cuplock Standard |
3.00 M |
9’10’’ |
17.35 KG |
38.25 LBS |
Note: Other Size Can be Customized .
Cuplock Ledger/Horizontal
(Normal Tube Size:Φ48.3x3.25mm)
(Available in Hot Dip Galvanized Surface or Customized)
|
Item No. |
Description |
Length |
Unit Weight |
||
|
RSCL 060 |
0.60M Cuplock Ledger |
0.50 M |
2’ |
2.47 KG |
5.45 LBS |
|
RSCL 090 |
0.90M Cuplock Ledger |
0.90 M |
3’ |
3.55 KG |
7.83 LBS |
|
RSCL 100 |
1.00M Cuplock Ledger |
1.00 M |
3’3’ |
3.95 KG |
8.71 LBS |
|
RSCL 120 |
1.20M Cuplock Ledger |
1.20 M |
4’ |
4.29 KG |
9.46 LBS |
|
RSCL 125 |
1.25M Cuplock Ledger |
1.25 M |
4’1’’ |
4.85 KG |
10.69 LBS |
|
RSCL 130 |
1.30M Cuplock Ledger |
1.30M |
4’3’’ |
5.05 KG |
11.33 LBS |
|
RSCL 150 |
1.50M Cuplock Ledger |
1.50 M |
4’11’’ |
5.75 KG |
12.68 LBS |
|
RSCL 160 |
1.60M Cuplock Ledger |
1.60 M |
5’3’’ |
6.09 KG |
13.43 LBS |
|
RSCL 180 |
1.80M Cuplock Ledger |
1.80 M |
6’ |
6.85 KG |
15.10 LBS |
|
RSCL 200 |
2.00M Cuplock Ledger |
2.00 M |
6’6’’ |
7.55 KG |
16.65 LBS |
|
RSCL 250 |
2.50M Cuplock Ledger |
2.50 M |
8’2’’ |
9.35 KG |
20.61 LBS |
Note: Other Size Can be Customized .
Descriptions:
Material:High Quality Q235 or 345 Strengh Steel
Tube:48.3×3.25mm or other required
Surface Treament:Galvanized ,Hot Dip Galvanized ,Painting ,Powder coated, others

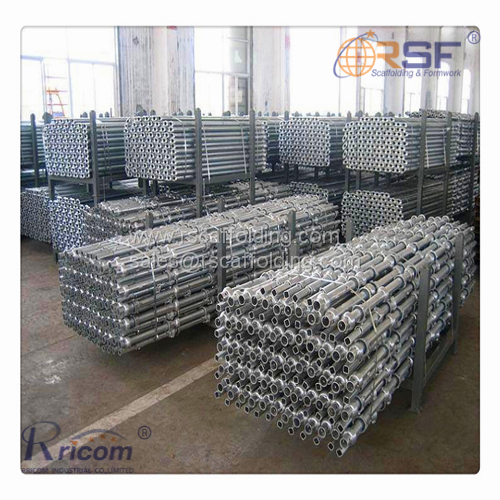

Packing:Steel Pallets with Plastic Membrane
Brand:RRICOM;RSF
OEM:Available

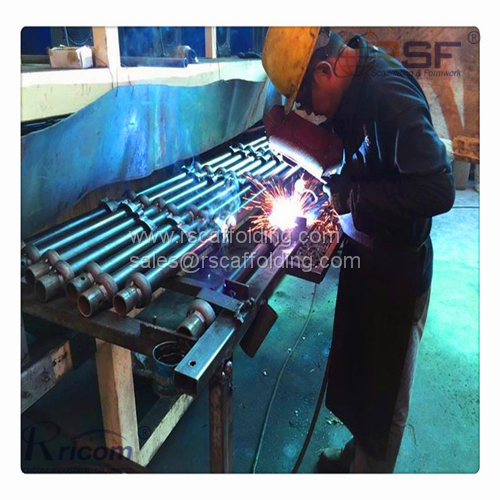

Note:Our factory can do all kinds of specifications Cuplock System Scaffold Products based on our customer’s drawings or samples
Call NOW 0086-186-6333-3376 for learning more about cuplock system scaffolding ! sales@rscaffolding.com
