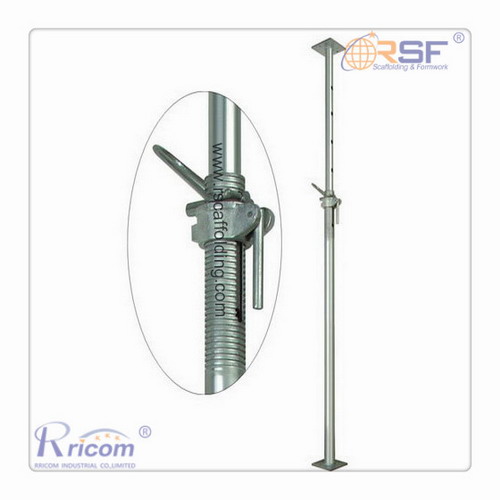

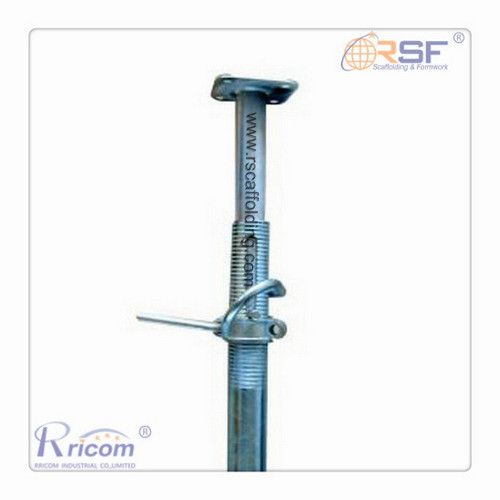

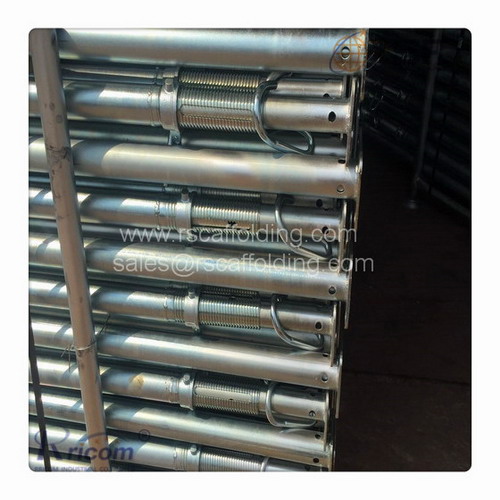

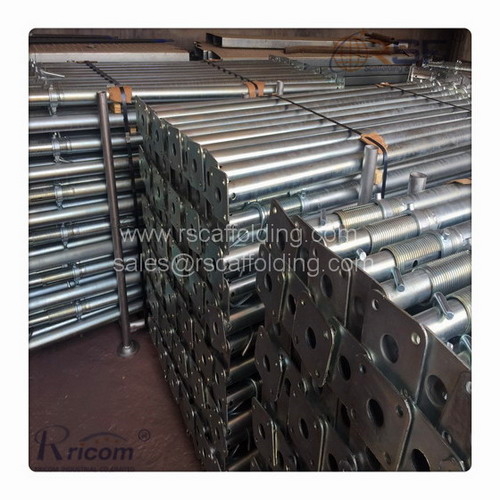

Heavy Duty Scaffolding Post Shores-(6’6”to11′)

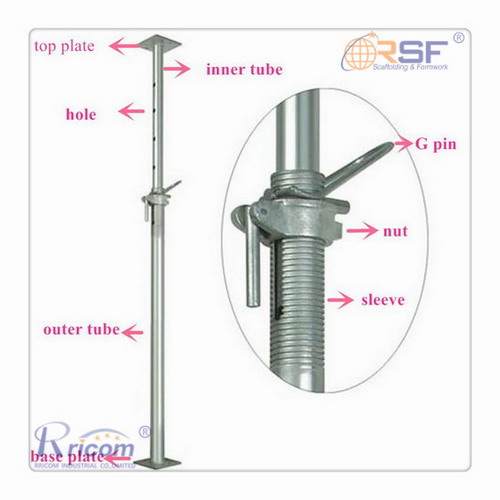

6'6'' to 11' Heavy Duty Post Shores(also known as Steel Props,Acrow Props,Telescopic Props,Shoring Props) Made by High Quality Strengh Steel 3M,4M,5M or other length can be customized
Scaffolding Post Shores(also known as Steel Props,Acrow Props,Telescopic Props,Shoring Props) Made by High Quality Strengh Steel
Descriptions :
Material:Q235 or Q345 High Quality Strengh Steel
Adjustable Range:6’6″–11′
Weight:40.50 lbs
Inner Tube:OD1.90″x0.126″
Outer Tube:OD2.38″x0.090″

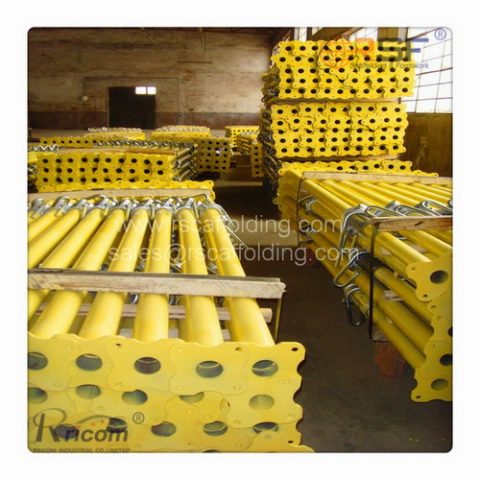

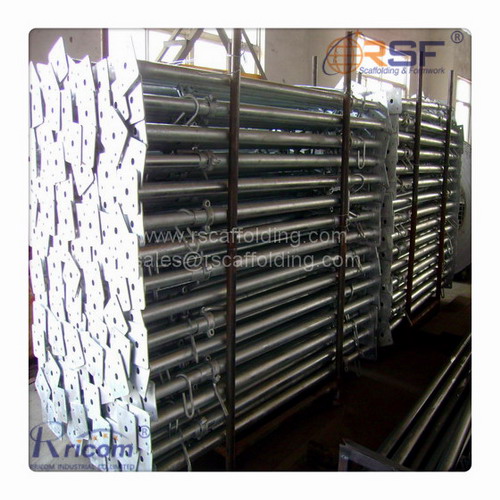

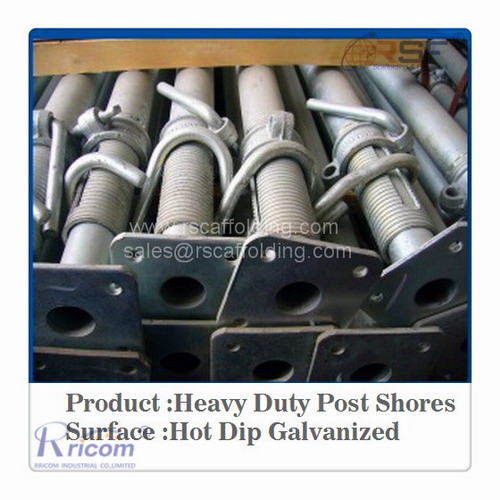

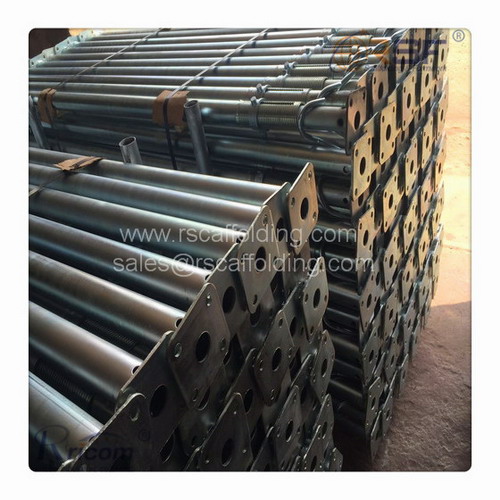

Surface Treament:Galvanized,Hot Dip Galvanized,Powder Coated,Painting or others

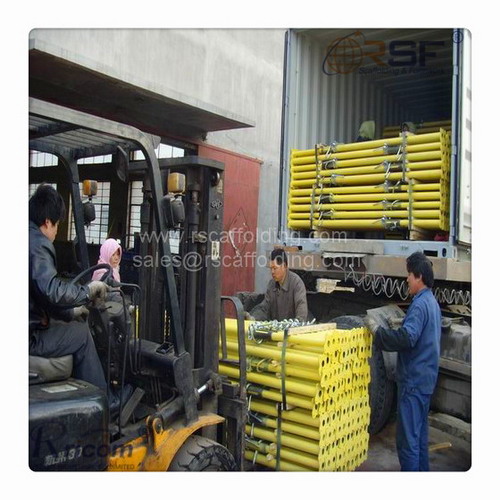

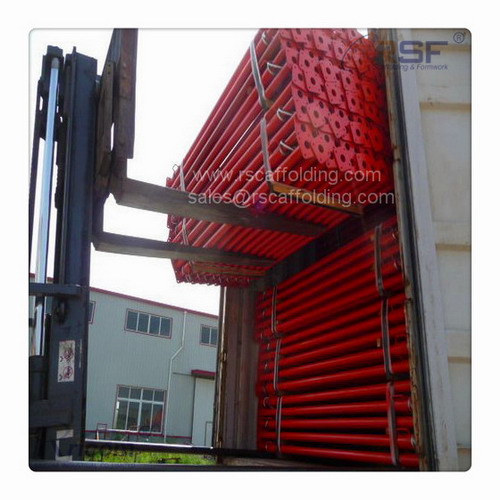

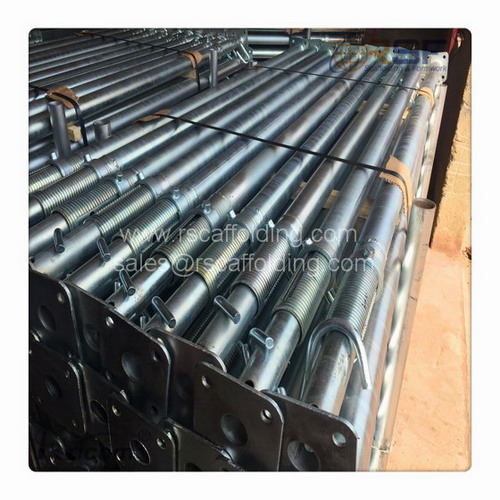

Packing:Wooden/Steel Pallets with Plastic Membrane
Brand:RRICOM;RSF
OEM:Available
Note:Our factory can do all kinds of specifications post shores based on our customer’s drawings or samples.
Heavy Duty Post Shores ( Steel Props)SPECIFICATIONS
|
Item No. |
Length |
External Tube |
Internal Tube |
Weight(lbs) |
|
RSP101 |
5’7”—9’6” |
2.38”x 0.09”x47.05” |
1.90”x0.126”x66.96” |
51.77 |
|
RSP102 |
3”6’—6’ |
2.38”x 0.09”x32.17” |
1.90”x0.126”x41.65” |
24.20 |
|
RSP103 |
5’9”—10’3” |
2.38”x 0.09”x50.94” |
1.90”x0.126”x66.73” |
36.87 |
|
RSP104 |
6’6”—11’ |
2.38”x 0.09”x52.28” |
1.90”x0.126”x77.48” |
40.50 |
|
RSP105 |
8’3”—13’ |
2.38”x 0.09”x62.28” |
1.90”x0.126”x101.5” |
45.50 |
|
RSP106 |
10’6”—16’ |
2.38”x 0.09”x68.62” |
1.90”x0.126”x125.5” |
53.5 |
| Note:We can do all kinds of specifications post shores based on our customer’s drawings | ||||
ALLOWABLE LOAD (LBS)
|
ITEMS |
4” |
5” |
6” |
7” |
8” |
9” |
10” |
11” |
12” |
13” |
14” |
15” |
|
RSP101 |
7200 |
7000 |
6800 |
|
|
|
|
|
|
|
|
|
|
RSP102 |
6800 |
6650 |
6500 |
|
|
|
|
|
|
|
|
|
|
RSP103 |
|
|
6500 |
6070 |
5650 |
5230 |
4810 |
|
|
|
|
|
|
RSP104 |
|
|
|
6180 |
5850 |
5650 |
5230 |
4810 |
|
|
|
|
|
RSP105 |
|
|
|
|
|
5650 |
5230 |
4810 |
4390 |
3970 |
|
|
|
RSP106 |
|
|
|
|
|
|
|
4810 |
4390 |
3970 |
3550 |
3250 |
