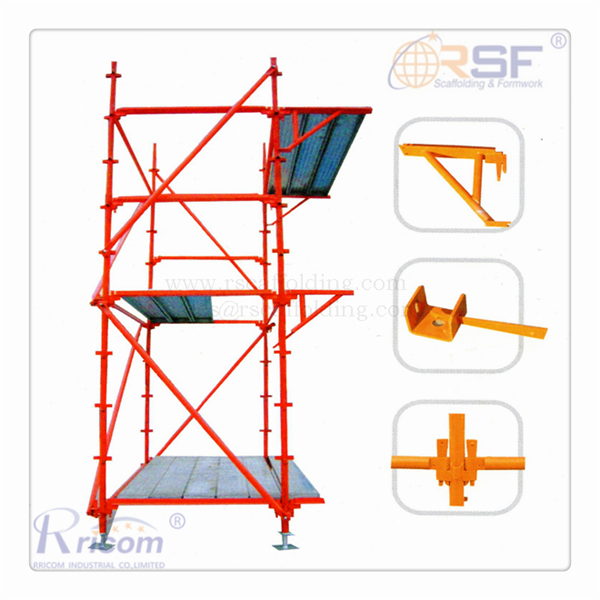

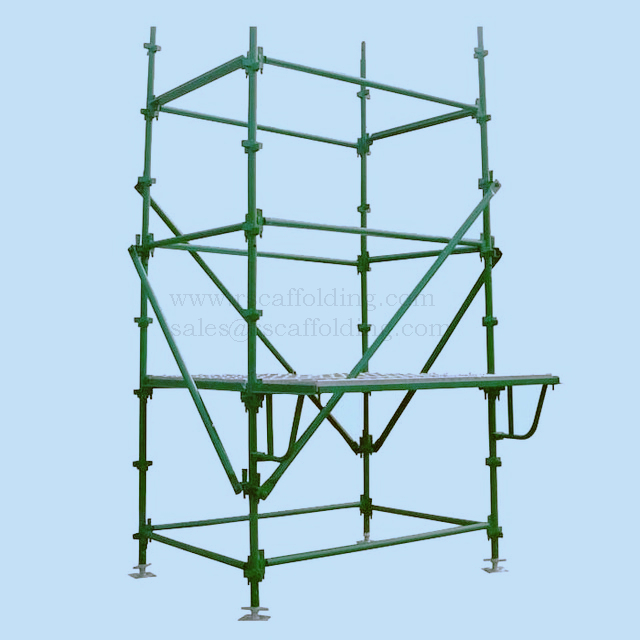

Kwikstage Scaffolding For Sale
Kwikstage System Scaffolding Made by High Quality Q235 or Q345 Strengh Steel-Kwikstage Standard/Vertical 1.Normal Tube Size:Φ48.3x4.0mm 2.Available in Hot Dip Galvanized Surface,Painted or Customized

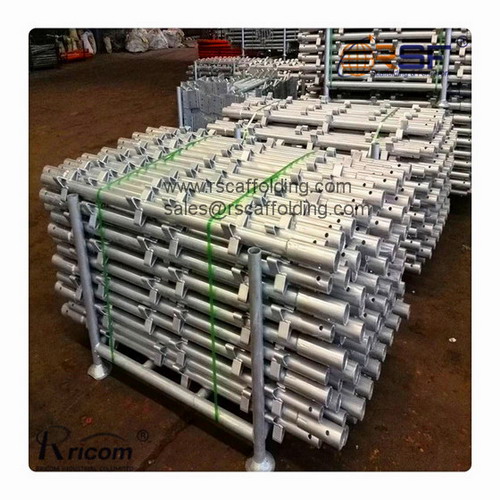

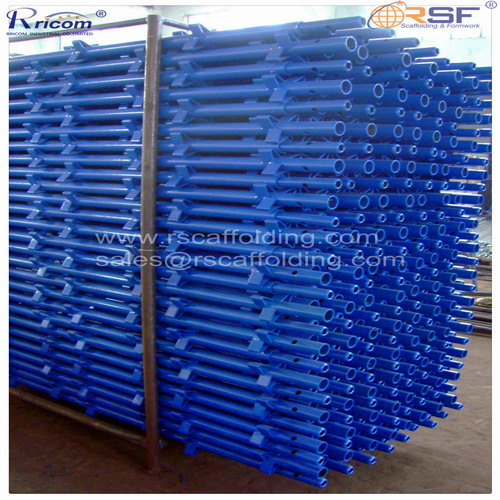

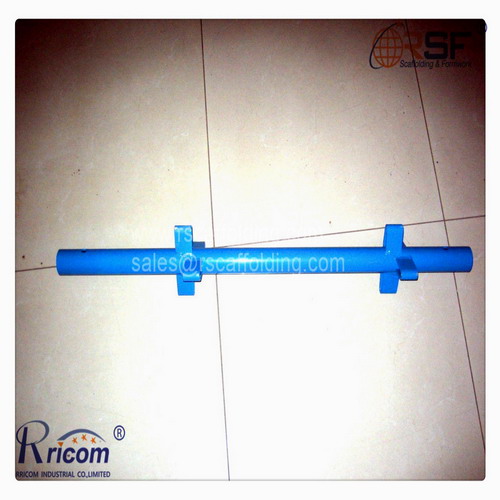

Kwikstage Standard/Vertical
1.Normal Tube Size:Φ48.3x4.0mm
2.Available in Hot Dip Galvanized Surface,Painted or Customized

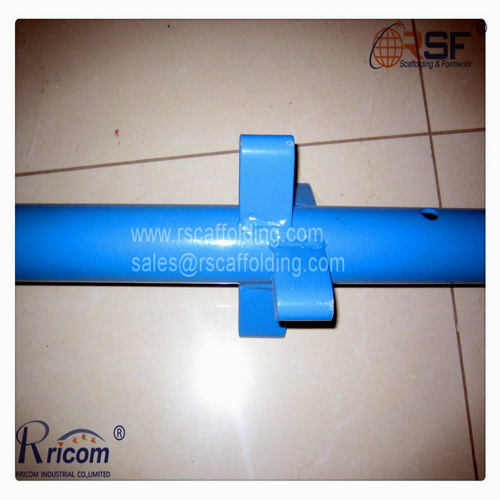

Standards are vertical structural member of the scaffold system which are made from Φ48.3x 4mm Tubes. Standards have V style pressings in clusters at 495 mm centre, which provide location points for Transoms, Ledgers, Braces,, Hop up etc and a spigot fixed at the top.
|
Item No. |
Description |
Length |
Unit Weight |
||
|
RSKS 030 |
0.30M Kwikstage Standard |
0.30 M |
11.8’’ |
3.00 KG |
6.61 LBS |
|
RSKS 050 |
0.50M Kwikstage Standard |
0.50 M |
1’7.5’’ |
3.50 KG |
7.72 LBS |
|
RSKS 100 |
1.00M Kwikstage Standard |
1.00 M |
3’3’ |
6.40 KG |
14.11 LBS |
|
RSKS 150 |
1.50M Kwikstage Standard |
1.50 M |
4’10.5’’ |
9.15 KG |
20.18 LBS |
|
RSKS 200 |
2.00M Kwikstage Standard |
2.00 M |
6’6’’ |
12.10 KG |
26.68 LBS |
|
RSKS 250 |
2.50M Kwikstage Standard |
2.50 M |
8’1.5’’ |
14.65 KG |
32.20 LBS |
|
RSKS 300 |
3.00M Kwikstage Standard |
3.00 M |
9’9’’ |
17.75 KG |
39.13 LBS |
Note: Other Size Can be Customized .
Kwikstage Ledger/Horizontal
(Normal Tube Size:Φ48.3x3.2mm/Φ48.3x4.0mm)
(Available in Hot Dip Galvanized Surface,Painted or Customized)
Ledgers is horizontal member of the scaffold system also known as guard rails are made from Φ48.3x3.2 mm & 4 mm tubes. Ledgers fit into the upper V Style Pressings on the standards.
|
Item No. |
Description |
Length |
Unit Weight |
||
|
RSKL 050 |
0.50M Kwikstage Ledger |
0.50 M |
1’7.5’’ |
3.45 KG |
7.61 LBS |
|
RSKL 070 |
0.70M Kwikstage Ledger |
0.70 M |
2’3.5’’ |
3.85 KG |
8.49 LBS |
|
RSKL 120 |
1.20M Kwikstage Ledger |
1.20 M |
3’11.3’’ |
5.00 KG |
11.02 LBS |
|
RSKL 180 |
1.80M Kwikstage Ledger |
1.80 M |
5’11’’ |
7.60 KG |
16.75 LBS |
|
RSKL 240 |
2.40M Kwikstage Ledger |
2.40 M |
7’10.5’’ |
9.50 KG |
20.94 LBS |
|
RSKL 300 |
3.00M Kwikstage Ledger |
3.00 M |
9’10’’ |
12.50 KG |
27.56 LBS |
Note: Other Size Can be Customized .
Kwikstage Diagonal Brace
(Normal Tube Size:Φ48.3x3.25mm)
(Available in Hot Dip Galvanized Surface,Painted or Customized)
A brace is paramount to ensure a true and level scaffold. As the brace fits diagonally across the bays, they will only fit into place if your scaffold is level. Fitting one of these to your first bay will ensure a level scaffold tower from the start. Made from nominal scaffold tube and flattened at each end, to accept a swivel “c” type coupler they come in various sizes.
|
Item No. |
Description |
Length |
Unit Weight |
||
|
RSDB 170 |
1.70M Kwikstage Brace |
1.70 M |
5’7’’ |
8.40 KG |
18.52 LBS |
|
RSDB 200 |
2.00M Kwikstage Brace |
2.00 M |
6’7’’ |
8.60 KG |
18.96 LBS |
|
RSDB 270 |
2.70M Kwikstage Brace |
2.70 M |
8’10.5’’ |
11.50 KG |
25.35 LBS |
|
RSDB 320 |
3.20M Kwikstage Brace |
3.20 M |
10’6’’ |
13.40 KG |
29.54 LBS |
|
RSDB 360 |
3.60M Kwikstage Brace |
3.60 M |
11’10’’ |
14.70 KG |
32.41 LBS |
Note: Other Size Can be Customized .
Descriptions:
Material:High Quality Q235 or 345 Strengh Steel
Tube:48.3×3.25mm/4.00mm or other required
Surface Treament:Galvanized ,Hot Dip Galvanized ,Painting ,Powder coated, others
Packing:Steel Pallets with Plastic Membrane
Brand:RRICOM;RSF
OEM:Available
Note:Our factory can do all kinds of specifications Kwikstage System Scaffold Products based on our customer’s drawings or samples
Call NOW 0086-186-6333-3376 for learning more about kwikstage system scaffolding ! sales@rscaffolding.com
