Kwikstage Scaffolding Ledger
Kwikstage System Scaffolding Made by High Quality Q235 or Q345 Strengh Steel- Tube:48.3x3.20mm/3.25mm/4.00mm or other required

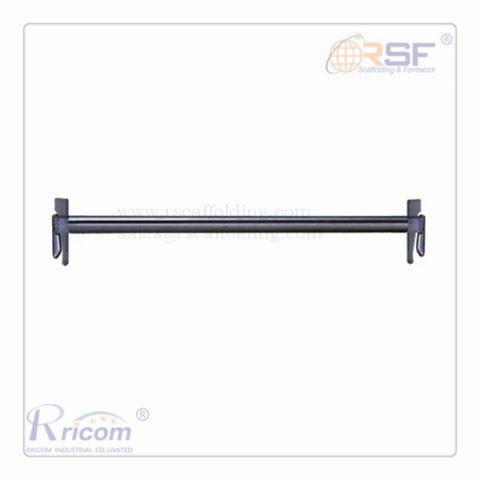

Kwikstage Ledger/Horizontal
1.Normal Tube Size:48.3x3.2mm/48.3x4.0mm
2.Available in Hot Dip Galvanized Surface,Painted or Customized
Ledgers is horizontal member of the scaffold system also known as guard rails are made from 48.3x3.2 mm & 4.00 mm tubes. Ledgers fit into the upper V Style Pressings on the standards.
|
Item No. |
Description |
Length |
Unit Weight |
||
|
RSKL 050 |
0.50M Kwikstage Ledger |
0.50 M |
1′7.5″ |
3.45 KG |
7.61 LBS |
|
RSKL 070 |
0.70M Kwikstage Ledger |
0.70 M |
2′3.5″ |
3.85 KG |
8.49 LBS |
|
RSKL 120 |
1.20M Kwikstage Ledger |
1.20 M |
3′11.3″ |
5.00 KG |
11.02 LBS |
|
RSKL 180 |
1.80M Kwikstage Ledger |
1.80 M |
5′11″ |
7.60 KG |
16.75 LBS |
|
RSKL 240 |
2.40M Kwikstage Ledger |
2.40 M |
7′10.5″ |
9.50 KG |
20.94 LBS |
|
RSKL 300 |
3.00M Kwikstage Ledger |
3.00 M |
9′10″ |
12.50 KG |
27.56 LBS |
Note: Other Size Can be Customized .
Descriptions:
Material:High Quality Q235 or 345 Strengh Steel
Tube:48.3×3.20mm/3.25mm/4.00mm or other required
Surface Treament:Galvanized ,Hot Dip Galvanized ,Painting ,Powder coated, others
Packing:Steel Pallets with Plastic Membrane
Brand:RRICOM;RSF
OEM:Available
Note:Our factory can do all kinds of specifications Kwikstage System Scaffold Products based on our customer’s drawings or samples
