Kwikstage Scaffolding Transom Angle Iron
Kwikstage System Scaffolding Made by High Quality Q235 or Q345 Strengh Steel Angle Iron(Normal Angle Iron Size:50x50x5mm)-Kwikstage Scaffolding Transom

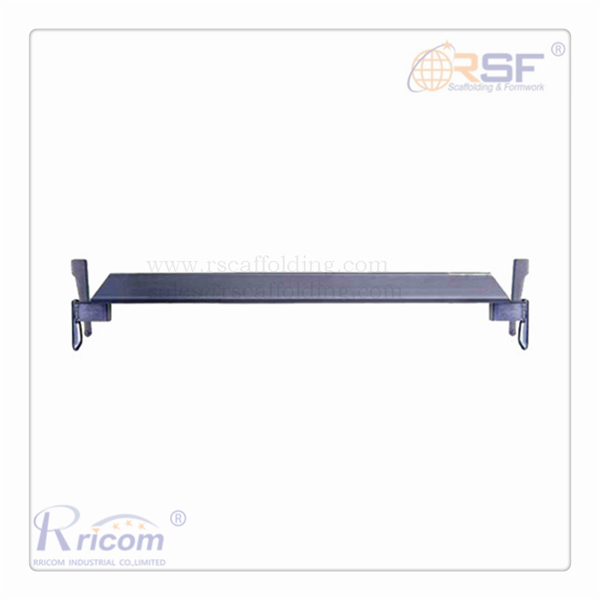

Kwikstage Transom
1.Normal Angle Iron Size:50x50x5mm
2.Available in Hot Dip Galvanized Surface,Painted or Customized
Transoms are made by welding two lengths of 50mm x 50mm angle iron back to back. Transoms fit into the lower V Style pressings on the standards to carry steel boards which make a safe working platform.
|
Item No. |
Description |
Length |
Unit Weight |
||
|
RSKT 050 |
0.50M Kwikstage Transom |
0.50 M |
1?7.5?? |
4.50 KG |
9.92 LBS |
|
RSKT 070 |
0.70M Kwikstage Transom |
0.70 M |
2?3.5?? |
5.80 KG |
12.79 LBS |
|
RSKT 120 |
1.20M Kwikstage Transom |
1.20 M |
3?11.3?? |
9.80 KG |
21.60 LBS |
|
RSKT 180 |
1.80M Kwikstage Transom |
1.80 M |
5?11?? |
15.0 KG |
33.07 LBS |
|
RSKT 240 |
2.40M Kwikstage Transom |
2.40 M |
7?10.5?? |
21.0 KG |
46.30 LBS |
Note: Other Size Can be Customized
Descriptions:
Material:High Quality Q235 or 345 Strengh Steel
Normal Angle Iron Size:50x50x5mm
Surface Treament:Galvanized ,Hot Dip Galvanized ,Painting ,Powder coated, others
Packing:Steel Pallets with Plastic Membrane
Brand:RRICOM;RSF
OEM:Available
Note:Our factory can do all kinds of specifications Kwikstage System Scaffold Products based on our customer’s drawings or samples
