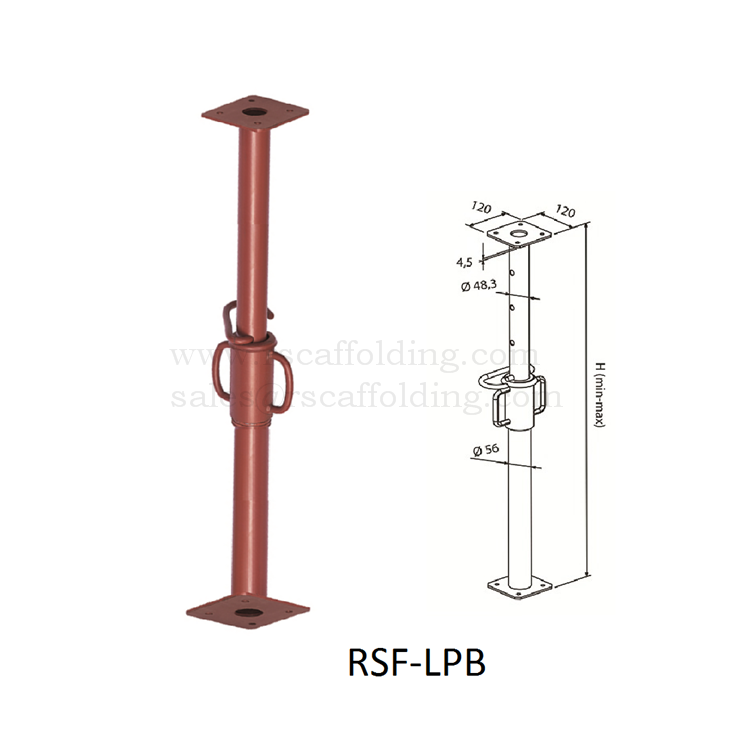

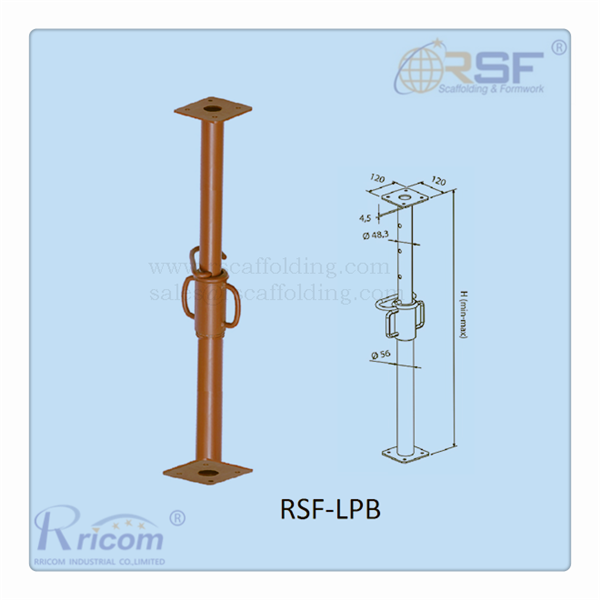

Light Type Steel Shoring Props(Europe Style)-PLB Series
Light Type Steel Shoring Props(Europe Style) The Light Type Steel Prop Mainly Refers to Its Double Handle Nut and Thinner Tube. Internal Tube:OD1.90″(Φ48.3mm);External Tube:OD2.20’’(Φ56mm) Material:S235JR High Strength Steel (EN10219-1/2 Standard) Pin Diameter:Φ12mm--Φ14mm Sleeve Nut Length:Mainly 135mm (130mm is still available) Galvanized or Painted Surface Treatment are available
Scaffolding Post Shores(also known as Steel Props,Acrow Props,Telescopic Props,Shoring Props) Made by High Quality Strengh Steel
Light Type Steel Shoring Props(Europe Style)-PLB Series
The Light Type Steel Prop Mainly Refers to Its Double Handle Nut and Thinner Tube.
Internal Tube:OD1.90″(Φ48.3mm);External Tube:OD2.20’’(Φ56mm)
Material:S235JR High Strength Steel (EN10219-1/2 Standard)
Pin Diameter:Φ12mm–Φ14mm
Sleeve Nut Length:Mainly 135mm (130mm is still available)
Galvanized or Painted Surface Treatment are available
PLB Series SECIFICATIONS:
|
Item No. |
Closed Height |
Extended Height |
Weight(lbs/kg) |
|||
|
LPB0204 |
9.84’’ |
0.25m |
15.75’’ |
0.40m |
7.1 lbs |
3.2 kg |
|
LPB0509 |
19.69’’ |
0.50m |
35.43’’ |
0.90m |
9.3 lbs |
4.2 kg |
|
LPB0712 |
27.56’’ |
0.70m |
47.24’’ |
1.20m |
10.8 lbs |
4.9 kg |
|
LPB1018 |
39.37’’ |
1.00m |
70.87’’ |
1.80m |
13.2 lbs |
6.0 kg |
|
LPB1629 |
62.30’’ |
1.60m |
114.17’’ |
2.90m |
18.1 lbs |
8.2 kg |
|
LPB1630 |
62.30’’ |
1.60m |
118.11’’ |
3.00m |
18.30 lbs |
8.3 kg |
|
LPB1832 |
70.87’’ |
1.80m |
125.98’’ |
3.20m |
19.4 lbs |
8.8 kg |
|
LPB2036 |
78.74’’ |
2.00m |
141.73’’ |
3.60m |
21.2 lbs |
9.6 kg |
|
LPB2240 |
86.61’’ |
2.20m |
157.48’’ |
4.00m |
24.3 lbs |
11.0 kg |
|
LPB2242 |
86.61’’ |
2.20M |
165.35’’ |
4.20m |
24.9 lbs |
11.3 kg |
|
LPB2545 |
98.43’’ |
2.50m |
177.17’’ |
4.50m |
27.1 lbs |
12.3 kg |
|
LPB3050 |
118.11’’ |
3.00m |
196.85’’ |
5.00m |
29.9 lbs |
13.6 kg |
|
LPB3055 |
118.11’’ |
3.00m |
216.54’’ |
5.50m |
34.2 lbs |
15.5 kg |
Note:Our factory can do all kinds of scaffolding post shores based on our customer’s drawings or samples
