Ringlock Scaffolding Diagonal Braces(RSDB Series)
Ringlock System Scaffolding Diagonal Brace Made by High Quality Q235 or Q345 Strengh Steel--Available in Hot Dip Galvanized steel tube 48.3*2.5mm; Bay braces are described by the horizontal rung and the rise on all Standard is 2M (6'7").

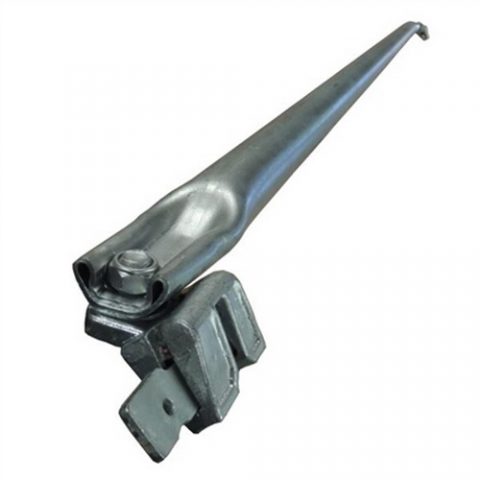

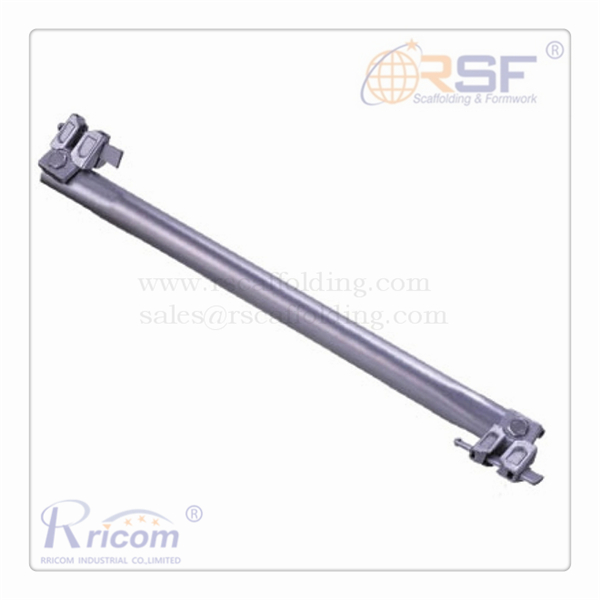

Ringlock Diagonal Brace
1.Normal Tube Size:?48.3×3.25mm
2.Available in Hot Dip Galvanized Surface or Customized
3.Bay braces are described by the horizontal rung and the rise on all Standard is 2M
|
Item No. |
Bay Length |
Brace Length |
Unit Weight |
||
|
RSDB 065 |
0.65M |
2?2?? |
2.07M |
7.35 KG |
16.20 LBS |
|
RSDB 088 |
0.88M |
2?10?? |
2.15M |
7.99 KG |
17.58 LBS |
|
RSDB 092 |
0.92M |
3? |
2.17M |
8.32 KG |
18.29 LBS |
|
RSDB 107 |
1.07M |
3?6?? |
2.23M |
8.40 KG |
14.49 LBS |
|
RSDB 115 |
1.15M |
3?10?? |
2.26M |
8.53 KG |
18.79 LBS |
|
RSDB 157 |
1.57M |
5?2?? |
2.48M |
9.25 KG |
20.35 LBS |
|
RSDB 183 |
1.83M |
6? |
2.64M |
9.75 KG |
21.39 LBS |
|
RSDB 213 |
2.13M |
7? |
2.85M |
10.31 KG |
22.69 LBS |
|
RSDB 244 |
2.44M |
8? |
3.07M |
11.03 KG |
24.25 LBS |
|
RSDB 305 |
3.05M |
10? |
3.56M |
12.15 KG |
26.75 LBS |
Note:Other Size Can be Customized.
Descriptions:
Material:High Quality Q235 or 345 Strengh Steel
Tube:48.3×3.25mm or other required

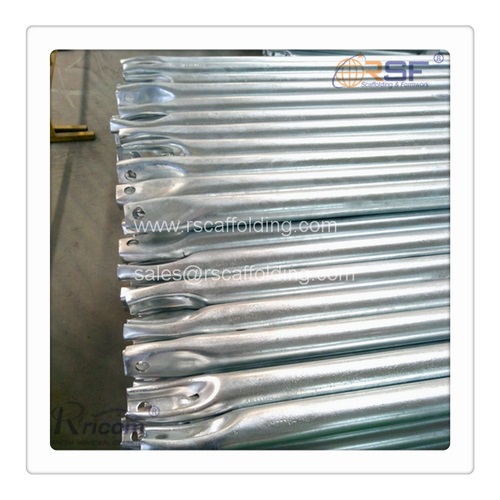

Surface Treament:Galvanized ,Hot Dip Galvanized ,Painting ,Powder coated, others

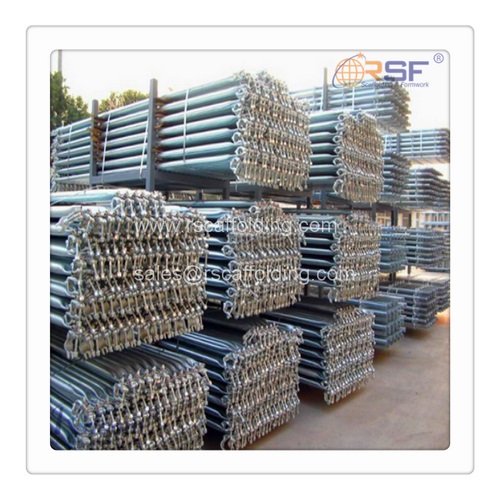

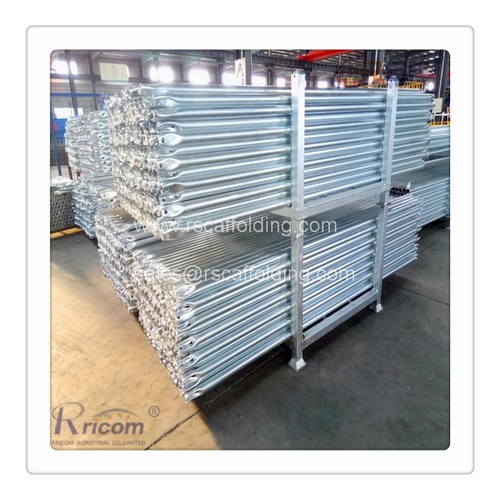

Packing:Steel Pallets with Plastic Membrane
Brand:RRICOM;RSF
Item No.:RSDB Series
OEM:Available
Note:Our factory can do all kinds of specifications Ringlock System Scaffold Products based on our customer’s drawings or samples
