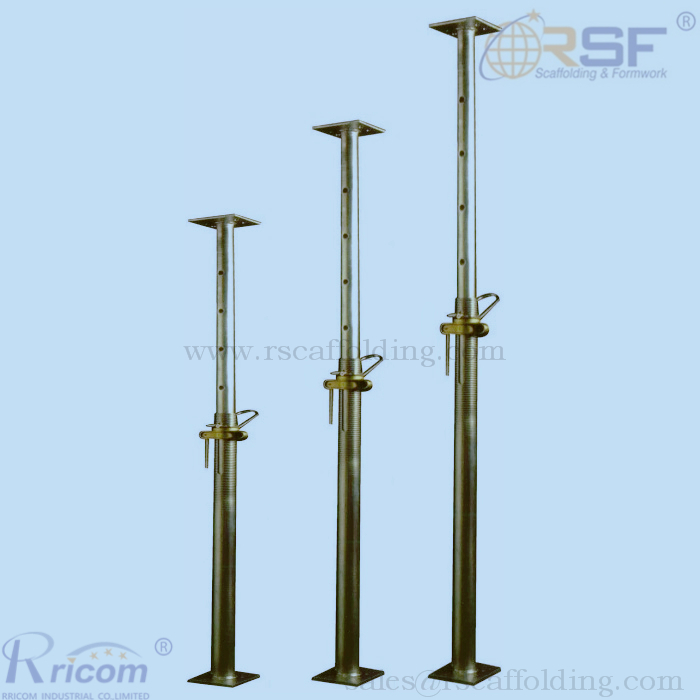

Heavy Duty Steel Props
Heavy Duty Post Shore(North America Style) Mainly Used in North America Market- Heavy Duty Casted Nut Internal Tube:OD1.90″x0.126″;External Tube:OD2.38″x0.090″ Internal Tube:Φ48.3X3.2mm;External Tube:Φ60.3x2.2mm Material:High Strength Steel Q235 or Q345. Pin Diameter:Φ14mm(9/16’’);External thread’s handled Φ16mm(5/8’’) Hot Dip Galvanized or Powder Coated Surface Treatment are available
Scaffolding Steel Props(also known as Post Shores,Acrow Props,Telescopic Props,Shoring Props,Steel Struts) Made by High Quality Strengh Steel
Heavy Duty Steel Props
Mainly Used in North America Market- Heavy Duty Casted Nut
Internal Tube:OD1.90″x0.126″;External Tube:OD2.38″x0.090″
Internal Tube:Φ48.3X3.2mm;External Tube:Φ60.3×2.2mm
Material:High Strength Steel Q235 or Q345.
Pin Diameter:Φ14mm(9/16’’);External thread’s handled Φ16mm(5/8’’)
Hot Dip Galvanized or Powder Coated Surface Treatment are available
SPECIFICATIONS:
|
Item No. |
Closed Height |
Extended Height |
Weight(lbs/kg) |
|||
|
RHPS101 |
4’ |
1.22m |
6’ |
1.83m |
30.0 lbs |
13.6 kg |
|
RHPS102 |
5’9’’ |
1.75m |
10’3’’ |
3.12m |
38.0 lbs |
17.2 kg |
|
RHPS103 |
6’6’’ |
1.98m |
11’ |
3.35m |
42.0 lbs |
19.1 kg |
|
RHPS104 |
8’6’’ |
2.59m |
13’ |
3.96m |
50.0 lbs |
22.7 kg |
|
RHPS105 |
10’6’’ |
3.20m |
16’ |
4.88m |
56.0 lbs |
25.4 kg |
|
RHPS106 |
10’6’’ |
3.20m |
18’ |
5.49m |
62.0 lbs |
28.1 kg |
Note:Any Other Size Can be Customized.
ALLOWABLE LOAD (LBS) Safety factor:3:1
|
ITEMS |
4” |
5” |
6” |
7” |
8” |
9” |
10” |
11” |
12” |
13” |
14” |
15” |
|
RHPS101 |
7200 |
7000 |
6800 |
|
|
|
|
|
|
|
|
|
|
RHPS102 |
6800 |
6650 |
6500 |
|
|
|
|
|
|
|
|
|
|
RHPS103 |
|
|
6500 |
6170 |
5650 |
5230 |
4810 |
|
|
|
|
|
|
RHPS104 |
|
|
|
6180 |
5850 |
5650 |
5230 |
4810 |
|
|
|
|
|
RHPS105 |
|
|
|
|
|
5650 |
5230 |
4810 |
4390 |
3970 |
|
|
|
RHPS106 |
|
|
|
|
|
|
|
4810 |
4390 |
3970 |
3550 |
3250 |
MORE SPECIFICATIONS:
|
Item No. |
Closed Height |
Extended Height |
Weight(lbs/kg) |
|||
|
RHPS107 |
3’ 10’’ |
1.15m |
6’1’’ |
1.85m |
28.0 lbs |
12.5 kg |
|
RHPS108 |
5’10’’ |
1.80m |
10’2’’ |
3.10m |
39.0 lbs |
17.5 kg |
|
RHPS109 |
6’5’’ |
1.95m |
11’ |
3.35m |
41.0 lbs |
18.5 kg |
|
RHPS110 |
7’11’’ |
2.40m |
13’2’’ |
4.00m |
44.0 lbs |
20.1 kg |
|
RHPS111 |
9’3’’ |
2.80m |
16’5’’ |
5.00m |
55.0 lbs |
24.8 kg |
Note:Our factory can do all kinds of scaffolding post shores based on our customer’s drawings or samples
